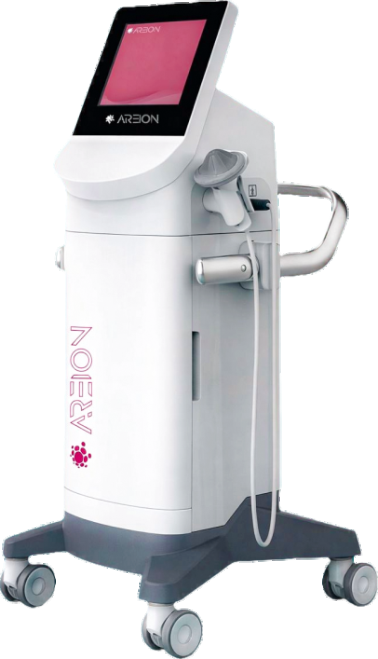

AR - B550
Body Composition Analyser
DSM-BIA professional human body composition analyzer, more than 50 sets of testing data to build a human data model, adopt IOT intelligent networking technology and IAP remote gateway technology, to meet various applications of Internet smart devices. With visitor mode and member mode, it can be widely used in various fields of medical treatment, gym and medical beauty fitness.
Product Features
Six core capabilities.
01
Professional body fat composition analysis
02
10.1 inch high resolution touch screen
03
IOT intelligent networking technology
04
Face image identification technology
05
Metabolic Age
06
DSM-BIA Technology
Measurement Accuracy
Precision across every measurement.
±0.1 cm
Height Measurement
Ultrasonic Probe
±2%
Measurement Accuracy
Body Fat Composition
±0.1 KG
Weight Accuracy
Platform
10.1 inch
Display
LCD Touch Screen
Core Technologies
Built for reproducible, accurate results.
Direct Segmental Measurement
Measurement absolutely accurate by measuring impedance for each different segment: 4 limbs and trunk.
8-point Tactile Electrode
8-point tactile electrodes technology has made it possible to enhance accuracy and reproducibility by fixing the measuring location of current and voltage.

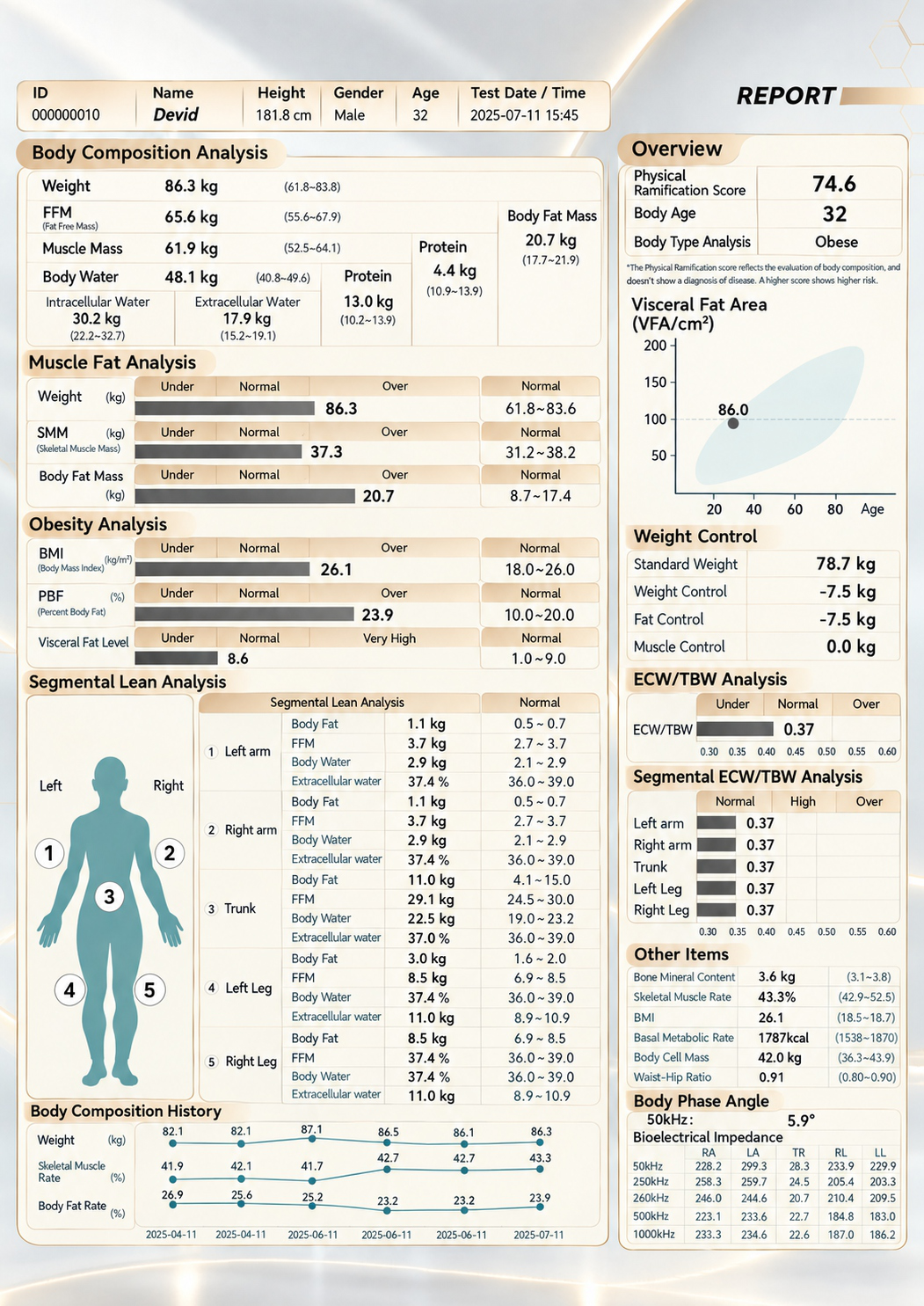

Sample Report
Comprehensive report at a glance.
Body Composition Analysis, Muscle Fat Analysis, Obesity Analysis, Segmental Lean Analysis, Visceral Fat Area, Weight Control, ECW/TBW Analysis, Segmental ECW/TBW Analysis, Body Phase Angle and Body Composition History — all delivered in a single, easy-to-read report.
Specifications
Full technical specifications.
| Model | AR - B550 |
| Test Range | |
|---|---|
| Gender | Male / Female |
| Age range | 3 – 99 years old |
| Temperature | 10 – 40°C |
| Humidity | 10 – 85% |
| Login Method | Face recognition, IC card, mobile phone & other login methods. Optional ID card login method, it can be used with consumer systems |
| Display | LED 300 nit, 10.1 inch |
| Height (optional) | |
| Measurement method | Industrial grade ultrasonic measurement (including temperature compensation) |
| Test Range | Height: 70 – 200 cm |
| Measurement accuracy | ±0.1 cm |
| Weight | |
| Measurement method | Parallel beam type weighting sensor |
| Measuring range | 5 – 500 kg |
| Maximum weight | Less than 500 kg |
| Measurement accuracy | ±0.1 kg |
| Fat Measurement | |
| Measuring system | 8 electrodes |
| Measuring frequency | 5 kHz / 50 kHz / 250 kHz / 500 kHz / 1000 kHz |
| Analysis Project | Body fat percentage, body fat mass, muscle mass, muscle percentage, body water percentage, body water content, protein, inorganic salt, intracellular fluid, extracellular fluid, BMI, basal metabolism, visceral fat level, skeletal muscle, body segment muscle mass, body segment fat mass, etc. |
| Other projects | Body segment impedance measurement with 5 frequency, body age evaluation, measurement evaluation, weight control, fat control, muscle control, etc. |
| Material | Plating materials |
| Measuring current | Below 90 µA |
| Resistance | 75.0 – 1,500,000 (0.10 Unit) |
| Measuring parts | Trunk, right leg, left leg, right arm, left arm |
| Data transmission | RJ45, WIFI |
| Voltage | 110 – 240 V, 50 – 60 Hz |
| Rated power | < 60 W |
Interested in the AR-B550?
Request specifications, pricing or a clinical demonstration with the Areion team.
