Precision Healing. Proven Results.

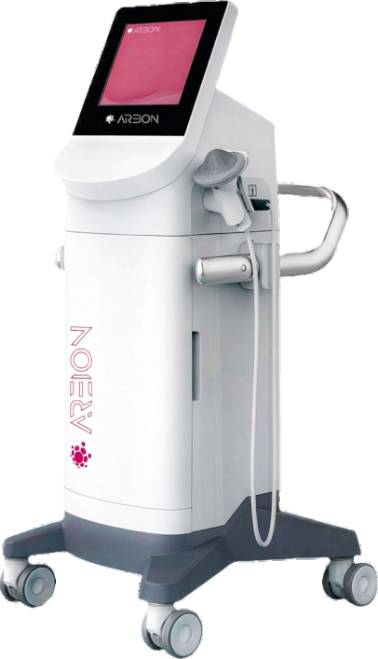

Focused Shockwave Therapy
Focused Shockwave Therapy is an advanced, non-invasive treatment designed to accelerate recovery and restore peak musculoskeletal performance. Backed by clinical evidence and used worldwide in sports medicine and rehabilitation, this therapy targets the underlying causes of pain — not just the symptoms.
Working Principle
Piezoelectric crystals on a concave surface.
The working principle of Focused Shockwave Therapy System is to arrange hundreds of piezoelectric crystals on a concave surface. When an external electric field passes through the crystals, their volume changes, generating pressure waves; as the crystals return to their original state, they produce tension waves. All the piezoelectric crystals vibrate together, emitting shockwaves that are collected by an ellipsoidal reflector, focusing the entire energy precisely on the treatment area.
Innovative Probe
Precise depth adjustment.
Eight interchangeable gel-head depths let clinicians deliver energy exactly where it is needed.
Depth 5 mm
Depth 10 mm
Depth 15 mm
Depth 20 mm
Depth 25 mm
Depth 30 mm
Depth 35 mm
Depth 45 mm
Delivering Appropriate Energy
Applied to the Precise Target Area

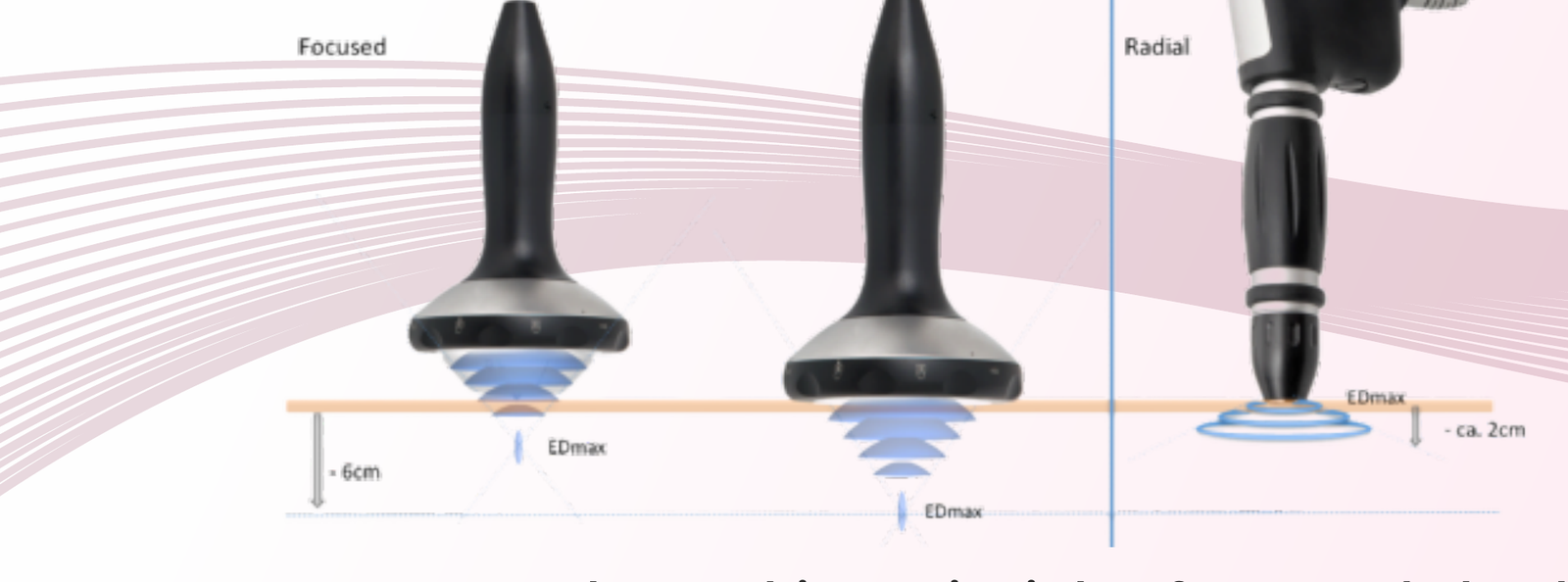

Focused Shockwave Therapy System uses interchangeable gel heads to adjust the treatment depth. This allows energy to be delivered more accurately to the desired depth and location. In contrast, traditional focused shockwaves (electromagnetic and electrohydraulic) rely on large water-bag probes for depth adjustment, which are less precise and generate loud noise.
Specifications
Piezoelectric Focused Shockwave.
| Feature | Piezoelectric Focused Shockwave |
|---|---|
| Wave Source Type | Focused |
| Energy Distribution | Maximum energy concentrated at a focal point inside the body; almost no energy on the skin surface |
| Peak Pressure | 20–60 MPa |
| Waveform | Cycle time < 1 ms, rise time < 50 ns, decay time 1.5 ms |
| Penetration Depth | Deep penetration |
| Precision of Action | Precise and targeted |
Key Clinical Advantages
What sets it apart.
- Extremely precise energy delivery
- Adjustable treatment depth
- Minimal energy loss at the skin surface
- Reduced discomfort compared to other shockwave types
- Ideal for deep, localized musculoskeletal conditions
Interested in the Focused Shockwave Therapy?
Request specifications, pricing or a clinical demonstration with the Areion team.
